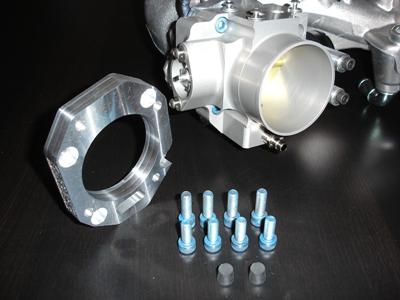

Karcepts BDL 70mm Throttle Body To RBC/RRB/RBB Intake Manifold
Adapter:

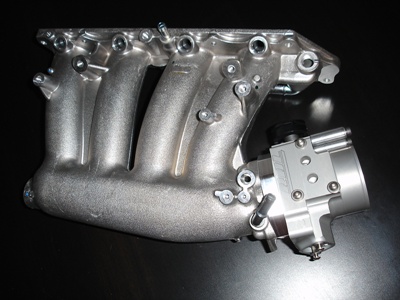

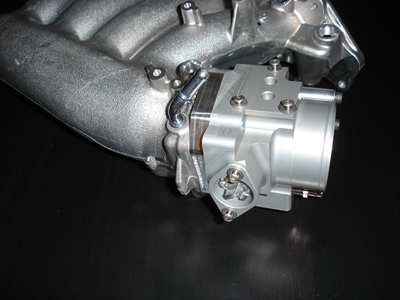

This adapter provides the SOLUTION for directly bolting up a BDL 70mm throttle body to an Accord Euro R,
2006-2008 Civic Si or 2004-2005 TSX intake manifold (fitment & install
identical to KIM01).

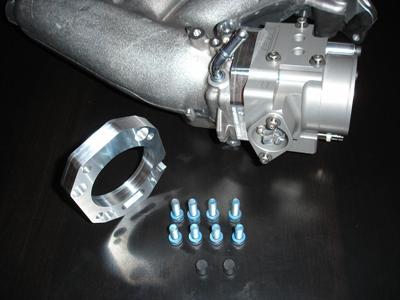

All mounting hardware is provided for attaching the adapter to the
intake manifold and the throttle body to the adapter. Two rubber plugs are
additionally included in order to plug the unused MAP sensor port located on
the RBC/RRB/RBB intake manifold as well as the ability to plug the EVAP
Purge Control Valve port (if desiring to do so) in order to
gain additional hood clearances.
Please view the Installation Instructions for any potential install/fitment
questions you may have.
It is recommended to port match the intake manifold in order to
realize the benefits of the 70mm bore.
